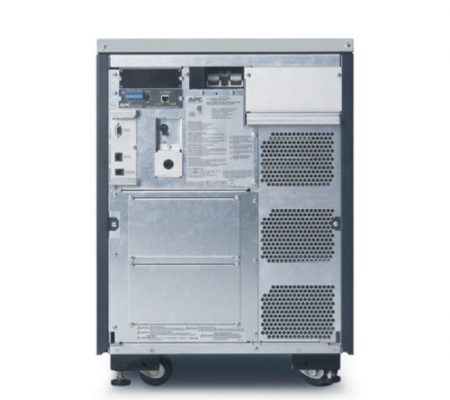

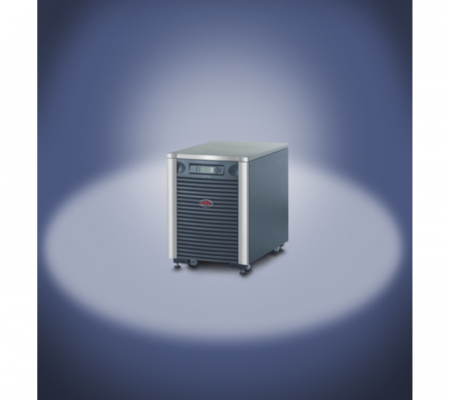

Անխափան սնուցման աղբյուր APC Symmetra LX 4kVA scalable to 8kVA N+1 Tower, 208/240V

  • Main Input Voltage 208 V
  • Other Input Voltage 240 V
  • Main Output Voltage 120 V 208 V
  • Other Output Voltage 240 V
  • rated power in W 3200 W
  • Rated power in VA 4000 VA
  • Output connector type Hard Wire 4-wire (2PH+N+G) 1

AMD

Request a quote
Availability: In Stock
SKU:SYA4K8P
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 120 V
208 V
Other Output Voltage 240 V
rated power in W 3200 W
Rated power in VA 4000 VA
Output connector type Hard Wire 4-wire (2PH+N+G) 1
Battery Type Lead-Acid battery
Provided equipment CD with software
Documentation CD
Installation guide
User Manual
Web/SNMP Management Card
product web sub-family 4kVA power increments
Number of power module free slots 2
Number of power module filled slots 1
Redundant Yes
color Black
Silver
Height 26.42 in (67.1 cm)
Width 19.02 in (48.3 cm)
Depth 28.58 in (72.6 cm)
Net Weight 347.74 lb(US) (157.73 kg)
Mounting Location Front
Mounting preference No preference
Mounting Mode Not rack-mountable
Two post mountable 0
USB compatible No
Input Frequency 45…65 Hz auto-sensing
Number of input connectors 1 Hard Wire 4-wire (2PH+N+G)
Efficiency at full load 96…138 V line to neutral
Input Total Harmonic Distortion Less than 7% for full load
Input Power Factor at Full Load 0.98
Max Configurable Power (Watts) 6400 W
Harmonic distortion Less than 5 % at full load
Output Frequency (sync to mains) 47…63 Hz sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal not synced
50 Hz +/- 0.1 % for 50 Hz nominal not synced
Crest factor Up to 5 : 1
Topology Double Conversion Online
Waveform Type Sine wave
bypass type Internal Bypass (Automatic and Manual)
Optional External Bypass
Maximum output current 18 A
Maximum configurable power in VA 8000 VA
roduct Certifications CSA
Standards FCC Part 15 class A
UL 1778
Ambient Air Temperature for Operation 32…104 °F (0…40 °C)
Relative Humidity 0…95 %
Operating altitude 0…10000 ft
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage Relative Humidity 0…95 %
Storage altitude 0…15000 ft (0.00…4572.00 m)
Acoustic level 62 dBA
heat dissipation 3485 Btu/h
