| Operating system | Included in Current Configuration |
| Windows 11 Pro for Workstations – HP recommends Windows 11 Pro for business | Alternate Options |
| Windows 11 Pro for Workstations – HP recommends Windows 11 Pro for business Windows 10 Pro for Workstations (available through downgrade rights from Windows 11 Pro for Workstations) Windows 10 Pro for Workstations (available through downgrade rights from Windows 11 Pro for Workstations) Ubuntu Linux 20.04 Linux-ready |
Processor |
| Included in Current Configuration | Intel® Xeon® W3-2423 Processor (2.1 GHz, 15 MB cache, 6 core, 120W) |
| Alternate Options | Intel® Xeon® W3-2425 Processor (3.0 GHz, 6 core, 130W) Intel® Xeon® W3-2435 Processor (3.1 GHz, 4800 MHz, 8 core, 165W) Intel® Xeon® W5-2445 Processor (3.1 GHz, 4800 MHz, 10 core, 175W) Intel® Xeon® W5-2455X Processor (3.2 GHz, 4800 MHz, 12 core, 200W) Intel® Xeon® W5-2465X Processor (3.1 GHz, 16 core, 200W) Intel® Xeon® W7-2475X Processor (2.6 GHz, 4800 MHz, 20 core, 225W) Intel® Xeon® W7-2495X Processor (2.5 GHz, 4800 MHz, 24 core, 225W) |
| ENERGY STAR compliance | Included in Current Configuration |
| ENERGY STAR Qualified Configuration | TCO Certified compliance |
| Included in Current Configuration | Compliant with TCO Certified |
| Sustainable Impact Specifications | [16,35,36,37,38]Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable |
| Memory | Included in Current Configuration |
| 16 GB (1 x 16 GB) DDR5-4800 DIMM ECC Registered Memory | Alternate Options |
| 32 GB (2 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) 64 GB (2 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) 64 GB (4 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) 128 GB (4 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) 128 GB (8 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) 256 GB (4 x 64 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) 256 GB (8 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) 512 GB (8 x 64 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor) |
Internal PCIe storage |
| Alternate Options | 512 GB HP Z Turbo Drive Dual Pro TLC SSD 1 TB HP Z Turbo Drive Dual Pro TLC SSD 2 TB HP Z Turbo Drive Dual Pro TLC SSD |
| Secondary internal PCIe storage | Alternate Options |
| 512 GB HP Z Turbo Drive PCIe NVMe Dual Pro TLC 2nd SSD 1 TB HP Z Turbo Drive PCIe NVMe Dual Pro TLC 2nd SSD 2 TB HP Z Turbo Drive Dual Pro TLC 2nd SSD |
Internal M.2 storage |
| Included in Current Configuration | 512 GB HP Z Turbo Drive M.2 SSD |
| Alternate Options | 512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 SSD 1 TB HP Z Turbo PCIe 4×4 OPAL 2 Self-Encrypted (SED) M.2 TLC SSD 1 TB HP Z Turbo PCIe 4×4 M.2 TLC SSD 2 TB HP Z Turbo Drive TLC M.2 SSD 2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC SSD |
| Secondary internal M.2 storage | Alternate Options |
| 512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 2nd SSD 512 GB HP Z Turbo Drive M.2 2nd SSD 1 TB HP Z Turbo PCIe 4×4 OPAL 2 Self-Encrypted (SED) M.2 TLC 2nd SSD 1 TB HP Z Turbo PCIe 4×4 M.2 TLC 2nd SSD 2 TB HP Z Turbo Drive TLC M.2 2nd SSD 2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC 2nd SSD 4 TB HP Z Turbo Drive M.2 2nd SSD |
Internal storage |
| Alternate Options | 1 TB 7200 RPM SATA 3.5″ Enterprise HDD 2 TB 7200 RPM SATA Enterprise 3.5″ HDD 4 TB 7200 RPM SATA 3.5″ Enterprise HDD 8 TB 7200 RPM SATA Enterprise 3.5″ HDD 12 TB 7200 RPM SATA-6G 3.5″ Enterprise HDD |
| Second internal storage | Alternate Options |
| 1 TB 7200 RPM SATA 3.5″ Enterprise 2nd HDD 2 TB 7200 RPM SATA Enterprise 3.5″ 2nd HDD 4 TB 7200 RPM SATA 3.5″ Enterprise 2nd HDD 8 TB 7200 RPM SATA Enterprise 3.5″ 2nd HDD 12 TB 7200 RPM SATA-6G 3.5″ Enterprise 2nd HDD |
Third internal storage |
| Alternate Options | 1 TB 7200 RPM SATA 3.5″ Enterprise 3rd HDD 2 TB 7200 RPM SATA Enterprise 3.5″ 3rd HDD 4 TB 7200 RPM SATA 3.5″ Enterprise 3rd HDD 8 TB 7200 RPM SATA Enterprise 3.5″ 3rd HDD 12 TB 7200 RPM SATA-6G 3.5″ Enterprise 3rd HDD |
| Internal OS load storage options | Included in Current Configuration |
| Operating System Load to M.2 | Alternate Options |
| Operating System Load to SATA | Graphics |
| Included in Current Configuration | AMD Radeon™ RX 6400 Graphics (4 GB GDDR6; FH; PCIe x16) |
| Alternate Options | NVIDIA® T400 (4 GB GDDR6, 3 x Mini DisplayPort) Graphics NVIDIA® T1000 (4 GB GDDR6, 4 x Mini DisplayPort, Blower Fan, PCIe x16) Graphics NVIDIA® T1000 (8 GB GDDR6, 4xMini DisplayPort, PCIe x16) Graphics NVIDIA® T1000 Long Life (8 GB GDDR6, 4xMini DisplayPort, PCIe x16) Graphics NVIDIA RTX™ A2000 (6 GB GDDR6 ECC, 4 x Mini DisplayPort 1.4) Blower Fan Graphics NVIDIA RTX™ A2000 (12 GB GDDR6, 4 x Mini DisplayPort 1.4) Graphics AMD Radeon™ RX 6700 XT Graphics (12 GB GDDR6, FH, PCIe x16) Graphics AMD Radeon™ PRO W6600 (8 GB GDDR6, 4x DisplayPort 1.4 with DSC) Graphics Card NVIDIA RTX™ A2000E Long Life (12 GB GDDR6, 4 x Mini DisplayPort 1.4) Graphics NVIDIA RTX™ A4000 (16 GB GDDR6 ECC, 4 x DisplayPort 1.4; FH) Blower Fan Graphics NVIDIA® RTX™ A4500 (20 GB GDDR6; 4 x DisplayPort 1.4) Graphics AMD Radeon™ PRO W6800 (32 GB GDDR6, 6 x DisplayPort 1.4 with DSC) Graphics Card NVIDIA® RTX™ A5000 (24 GB ECC GDDR6; 4 x DisplayPort 1.4, PCIe x16) Blower Fan Graphics NVIDIA® RTX™ A6000 (48 GB ECC GDDR6; 4 x DisplayPort 1.4, PCIe x16) Graphics – Blower Fan |
| Second graphics card | Alternate Options |
| NVIDIA® T400 (4 GB GDDR6, 3 x Mini DisplayPort) 2nd Graphics NVIDIA® T1000 (4 GB GDDR6, 4 x Mini DisplayPort, Blower Fan, PCIe x16) 2nd Graphics NVIDIA® T1000 (8 GB GDDR6, 4 x Mini DisplayPort, PCIe x16) 2nd Graphics NVIDIA RTX™ A2000 (6 GB GDDR6 ECC, 4 x Mini DisplayPort 1.4) 2nd Graphics NVIDIA® T1000 Long Life (8 GB GDDR6, 4xMini DisplayPort, PCIe x16) 2nd Graphics NVIDIA RTX™ A2000 (12 GB GDDR6, 4 x Mini DisplayPort 1.4) 2nd Graphics NVIDIA RTX™ A2000E Long Life (12 GB GDDR6, 4 x Mini DisplayPort 1.4) 2nd Graphics NVIDIA RTX™ A4000 (16 GB GDDR6 ECC, 4 x DisplayPort 1.4; FH) Blower Fan 2nd Graphics NVIDIA RTX™ A4000E Long Life (16 GB GDDR6, 4 x Mini DisplayPort 1.4) 2nd Graphics NVIDIA® RTX™ A4500 (20 GB GDDR6; 4 x DisplayPort 1.4) 2nd Graphics NVIDIA® RTX™ A5000 (24 GB ECC GDDR6; 4 x DisplayPort 1.4, PCIe x16) 2nd Graphics NVIDIA® RTX™ A6000 (48 GB ECC GDDR6; 4 x DisplayPort 1.4, PCIe x16) 2nd Graphics |
Additional networking options |
| Alternate Options | Intel Ethernet Network Adapter I225-T1 Allies Telesis AT-2011T/2-901 Dual Port 1 GBE Network Interface Card AT-2914SX/LC PCIe Fiber Adapter Intel® X550-T2 10GbE Dual Port NIC NVIDIA® Mellanox ConnectX®-6 Dx Dual Port 10/25GBE SFP28 Network Interface Card |
| Application software | Alternate Options |
| Data Science Stack WSL2/Ubuntu Data Science Stack |
Additional application software |
| Included in Current Configuration | HP Anyware Professional Trial 90 days 1 user |
| Alternate Options | HP Anyware Professional 1 year 1 user HP Anyware Professional 3 year 1 user |
| Media reader | Alternate Options |
| HP SD Card Reader | Optical drive |
| Included in Current Configuration | No included Optical Disc Drive |
| Alternate Options | 9.5mm DVD-ROM 1st Optical Disc Drive 9.5mm DVD-Writer 1st Optical Disc Drive 9.5mm Blu-ray Writer 1st Optical Disc Drive |
| Secondary optical drive | Alternate Options |
| 9.5mm DVD-Writer 2nd Optical Disc Drive 9.5mm Blu-ray Writer 2nd Optical Disc Drive |
Keyboard |
| Included in Current Configuration | HP 125 Black Wired Keyboard |
| Alternate Options | No Included Keyboard HP USB 320K Keyboard HP USB Business Slim Wired SmartCard CCID Keyboard |
| Mouse | Included in Current Configuration |
| HP Wired 320M Mouse | Alternate Options |
| No Included Mouse HP Wired 128 Laser Mouse |
Graphics connectors |
| Included in Current Configuration | No Adapters Needed |
| Alternate Options | HP mini DisplayPort-to-DisplayPort Adapter HP DisplayPort to HDMI 2.0 HP mini DisplayPort-to-DisplayPort Adapter (2-pack) HP mini DisplayPort-to-DisplayPort Adapter (4-pack) HP mini DisplayPort-to-DisplayPort Adapter (8-pack) |
| Label | Alternate Options |
| FDA Class 1 Medical Device Label | LAN |
| Alternate Options | Intel® AX210 Wi-Fi 6E + Bluetooth 5.2 (no-vPro™) with External Antenna |
| Security | Alternate Options |
| HP Platform Certificate HP Sure Recover Permanently Disabled Permanently disable audio HP Solenoid Lock and Hood Sensor (TWR) |
Accessories |
| Included in Current Configuration | HP Z4 G5 Fan and Front Card Guide Kit |
| Alternate Options | Z4/Z6 Side Panel Barrel Keylock HP Internal Serial Port/PS/2 Ports HP Type-A 2.0 Port Adapter Kit HP Z4 G5 Dust Filter Bezel HP Z4 G5 PCIe Retainer with Fans HP Z4 G5 Memory Cooling Solution NVIDIA® NVLink™ 3-Slot Bridge |
| Warranty | Included in Current Configuration |
| One-year (1/1/1) limited warranty | External I/O Ports |
| [29]Front (Premium version):2 SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery); 2 SuperSpeed USB Type-A 5Gbps signaling rate; 1 headset/microphone combo Rear:6 SuperSpeed USB Type-A 5Gbps signaling rate; 1 RJ-45; 1 audio-in/out : : |
Expansion slots |
| 1 PCIe 5 x16; 2 PCIe 4 x16; 2 PCIe 4 x4Rear bulkhead access can be achieved through all slots but 2 PCIe 4 x8, and 2 PCIe 4 x8 are internal access only for M.2 (1 PCIe 4 x16 available when 2nd CPU is not installed; 1 PCIe 3 x16 available only when 2nd CPU is installed). | Memory slots |
| 8 DIMM | Software included |
| HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack | Security management |
| Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives | Management software |
| HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support | Weight |
| Starting at 23.2 lb | Package weight |
| Starting at 31.61 lb | Dimensions (W X D X H) |
| 6.65 x 17.50 x 15.20 in | Package dimensions |
| 12.36 x 22.52 x 22.17 in |

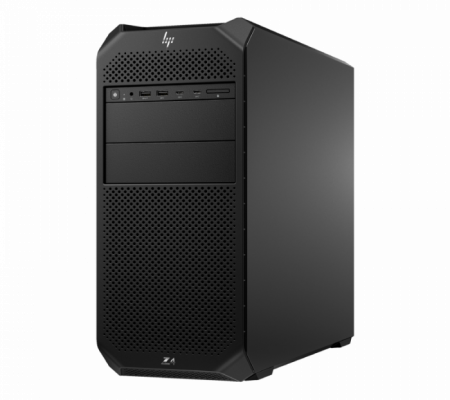

Համակարգիչ HP Z4 G5 Tower Workstation
- Windows 11 Pro for Workstations – HP recommends Windows 11 Pro for business
- Intel® Xeon® W3-2423 Processor (2.1 GHz, 15 MB cache, 6 core, 120W)
- 16 GB memory; 512 GB M.2 storage
- AMD Radeon™ RX 6400 Graphics with 4 GB GDDR6 graphics memory
