Capacity32 TB raw
Host interface4 x 1GbE standard
Protocol supportedSMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
Replication supportMicrosoft Distributed File System Replication (DFS-R)–supports up to 100TB
Storage expansion optionsAll HPE StoreEasy models support external expansion using HPE MSA SAN Storage or D3X10, D6020, and D8000 Disk Enclosure product families. A Fibre Channel, SAS, or iSCSI connection must be added to support MSA SAN Storage (note that high-availability clustering is not supported) while a Smart Array controller with external ports must be added to support external Disk Enclosures.
Compatible operating systemsMicrosoft® Windows® Server IoT 2019 for Storage Standard Edition is pre-installed. Client operating systems supported include Microsoft® Windows®, Mac OS, Linux®, and Unix.
Management featuresHPE StoreEasy Management Console version;
HPE iLO5;
HPE Smart Storage Administrator;
Windows Server® Manager and utilities
Drive description4 x 8 TB SATA 6G Midline 7.2K LFF HDDs standard
Clustering supportNot supported on HPE StoreEasy 1000 Storage appliances
HD typeHot-plug SATA or SAS, LFF (3.5″)
Snapshot supportMicrosoft Volume Shadow Copy Service (VSS)
Form factor (fully configured)1U rack mount
Warranty3/3/3 system warranty includes three years of parts, three years of labor, three years of onsite support coverage, next business day response. Software media is warranted to be free of physical defect for a period of 90 days from delivery.
Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home
Weight37 lb maximum
Weight16.78 kg maximum
Minimum dimensions ( H x W x D)1.69 x 17.11 x 29.5 in
Minimum dimensions ( H x W x D)8.73 x 44.54 x 73.02 cm (without bezel)

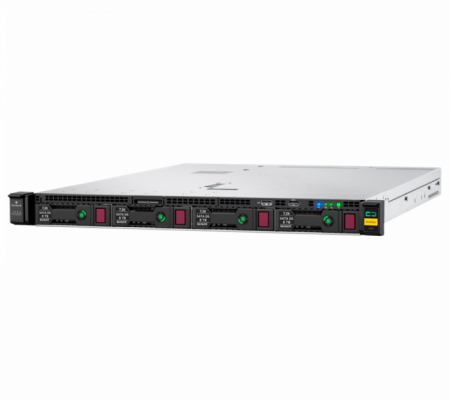

Detailed product descriptionComes with Microsoft® Windows Server IoT 2019 for Storage Standard Edition with HPE StoreEasy Management Console pre-installed, and features an Intel® Xeon-Bronze 3204 processor, 16GB of memory, HPE Smart Array P408i-a storage controller, 4 x 1GbE ports, redundant fans, a 1U rackmount form factor, and 4 x 8TB LFF (3.5″) drives).
