CapacityDepends on configuration (67.2 TB raw maximum)
Host interfaceOption to choose
Protocol supportedSMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
Replication supportMicrosoft Distributed File System Replication (DFS-R)–supports up to 100TB
Storage expansion optionsAll HPE StoreEasy models support external expansion using HPE MSA SAN Storage or D3X10, D6020, and D8000 Disk Enclosure product families. A Fibre Channel, SAS, or iSCSI connection must be added to support MSA SAN Storage (note that high-availability clustering is not supported) while a Smart Array controller with external ports must be added to support external Disk Enclosures.
Compatible operating systemsMicrosoft® Windows® Server IoT 2019 for Storage Standard Edition is pre-installed. Client operating systems supported include Microsoft® Windows®, Mac OS, Linux®, and Unix.
Management featuresHPE StoreEasy Management Console version;
HPE iLO5;
HPE MR Storage Administrator;
HPE Smart Storage Administrator;
Windows Server® Manager and utilities
Drive descriptionDoes not include data drives standard. 16 x SFF (2.5″) hot-plug front drive bays standard; 8 x SFF (2.5″) hot-plug front drive cage is optional; 8 x SFF (2.5″) hot-plug mid-chassis drive cage is optional; 2 x SFF hot-plug rear-chassis drive cage is optional
Clustering supportNot supported on HPE StoreEasy 1000 Storage appliances
HD typeHot-plug SATA or SAS, SFF (2.5″)
Snapshot supportMicrosoft Volume Shadow Copy Service (VSS)
Form factor (fully configured)2U rack mount
Warranty3/3/3 system warranty includes three years of parts, three years of labor, three years of onsite support coverage, next business day response. Software media is warranted to be free of physical defect for a period of 90 days from delivery.
Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home
Weight63.43 lbs maximum (without rear drives)
Weight28.77 kg maximum (without rear drives)
Minimum dimensions ( H x W x D)3.44 x 17.54 x 28 in (without bezel)
Minimum dimensions ( H x W x D)8.75 x 44.54 x 71 cm (without bezel)

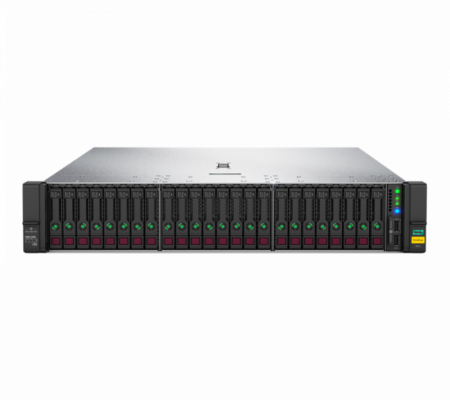

Detailed product descriptionComes with Microsoft® Windows Server IoT 2019 for Storage Standard Edition with HPE StoreEasy Management Console pre-installed, and features an Intel® Xeon-Bronze 3204 processor, 16GB of memory, 2 x 10GbE ports (option to change to 4 x 1 GbE ports), redundant power and fans, a 2U rackmount form factor, HPE Broadcom MegaRAID 416i-a storage controller, and 16 SFF (2.5″) drive bays standard (with an option to add another 16 x SFF bays with the optional cages).
