| Operating system | Included in Current Configuration |
| Windows 11 Pro – HP recommends Windows 11 Pro for business | Alternate Options |
| Windows 11 Pro – HP recommends Windows 11 Pro for business Windows 10 Pro for Workstations (available through downgrade rights from Windows 11 Pro for Workstations) Windows 10 Pro (available through downgrade rights from Windows 11 Pro) Ubuntu Linux 20.04 Linux-ready |
Processor |
| Included in Current Configuration | Intel® Xeon® W-2223 Processor (3.6 GHz, up to 3.9 GHz w/Boost, 8.25 MB cache, 2666MHz, 4 core, 120W) |
| Alternate Options | Intel® Xeon® W-2225 Processor (4.1 GHz, up to 4.6 GHz w/Boost, 8.25 MB cache, 2933 MHz, 4 core, 105W) Intel® Xeon® W-2235 Processor (3.8 GHz, up to 4.6 GHz w/Boost, 8.25 MB cache, 2933 MHz, 6 core, 130W) Intel® Xeon® W-2245 Processor (3.9 GHz, up to 4.5 GHz w/Boost, 16.5 MB cache, 2933 MHz, 8 core, 155W) Intel® Xeon® W-2255 Processor (3.7 GHz, up to 4.5 GHz w/Boost, 19.25 MB cache, 2933 MHz, 10 core, 165W) Intel® Xeon® W-2275 Processor (3.3 GHz, up to 4.6 GHz w/Boost, 19.25 MB cache, 2933MHz, 14 core, 165W) Intel® Xeon® W-2295 Processor (3 GHz, up to 4.6 GHz w/Boost, 24.75 MB cache, 2933MHz, 18 core, 165W) Intel® Xeon® W-2265 Processor (3.5 GHz, up to 4.6 GHz w/Boost, 19.25 MB cache, 2933MHz, 12 core, 165W) |
| ENERGY STAR compliance | Alternate Options |
| ENERGY STAR Qualified Configuration | Chassis |
| Included in Current Configuration | HP ZCentral 4R Entry Chassis |
| Alternate Options | HP ZCentral 4R Entry Redundant Chassis HP ZCentral 4R High End Chassis |
| Memory | Included in Current Configuration |
| 8 GB (1 x 8 GB) DDR4-2933 DIMM ECC Registered Memory | Alternate Options |
| 16 GB (1 x 16 GB) DDR4-2933 DIMM ECC Registered Memory 16 GB (2 x 8 GB) DDR4-2933 DIMM ECC Registered Memory 24 GB (3 x 8 GB) DDR4-2933 DIMM ECC Registered Memory 32 GB (2 x 16 GB) DDR4-2933 DIMM ECC Registered Memory 32 GB (4 x 8 GB) DDR4-2933 ECC Registered Memory 64 GB (2 x 32 GB) DDR4-2933 DIMM ECC Registered Memory 64 GB (4 x 16 GB) DDR4-2933 ECC DIMM Registered Memory 128 GB (2 x 64 GB) DDR4-2933 ECC Registered Memory 128 GB (4 x 32 GB) DDR4-2933 ECC Registered Memory 256 GB (4 x 64 GB) DDR4-2933 ECC Registered Memory |
Internal PCIe storage |
| Alternate Options | 512 GB HP Z Turbo Drive Dual Pro TLC SSD 1 TB HP Z Turbo Drive Dual Pro TLC SSD 2 TB HP Z Turbo Drive Dual Pro TLC SSD |
| Secondary internal PCIe storage | Alternate Options |
| 512 GB HP Z Turbo Drive Dual Pro TLC 2nd SSD 1 TB HP Z Turbo Drive Dual Pro TLC 2nd SSD 2 TB HP Z Turbo Drive Dual Pro TLC 2nd SSD |
Internal M.2 storage |
| Included in Current Configuration | 256 GB HP Z Turbo Drive TLC SSD |
| Alternate Options | 256 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) NVMe TLC SSD 512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) NVMe TLC SSD 512 GB HP Z Turbo Drive TLC SSD 4 TB HP Z Turbo Drive OPAL 2 Self-Encryting (SED) M.2 SSD |
| Secondary internal M.2 storage | Alternate Options |
| 256 GB HP Z Turbo Drive TLC 2nd SSD 512 GB HP Z Turbo Drive TLC 2nd SSD 1 TB HP Z Turbo Drive TLC 2nd SSD 2 TB HP Z Turbo Drive M.2 PCIe TLC 2nd SSD 4 TB HP Z Turbo Drive M.2 2nd SSD |
Internal storage |
| Alternate Options | 1 TB 7200 RPM SATA 3.5″ Enterprise HDD 480 GB SATA Enterprise SSD 960 GB SATA-3 Enterprise 2.5″ SSD 1920 GB SATA-3 2.5″ Enterprise SSD |
| Second internal storage | Alternate Options |
| 240 GB SATA Enterprise 2nd SSD 480 GB SATA Enterprise 2nd SSD 960 GB SATA-3 Enterprise 2.5″ 2nd SSD 1920 GB SATA-3 2.5″ Enterprise 2nd SSD |
Third internal storage |
| Alternate Options | 240 GB SATA Enterprise 3rd SSD 480 GB SATA Enterprise 3rd SSD 960 GB SATA-3 Enterprise 2.5″ 3rd SSD 1920 GB SATA-3 2.5″ Enterprise 3rd SSD |
| Internal OS load storage options | Included in Current Configuration |
| Operating System Load to M.2 | Alternate Options |
| Operating System Load to SATA | Real-time data backup |
| Alternate Options | RAID 0 Striped Array Configuration RAID 1 Mirrored Array Configuration RAID 10 Striped/Mirrored Configuration |
| Graphics | Alternate Options |
| NVIDIA® T400 (4 GB GDDR6, 3 x Mini DisplayPort) Graphics NVIDIA® T1000 (4 GB GDDR6, 4 x Mini DisplayPort) Graphics NVIDIA® T1000 (8 GB GDDR6, 4xMini DisplayPort, PCIe x16) Graphics NVIDIA RTX™ A2000 (6 GB GDDR6 ECC, 4 x Mini DisplayPort 1.4) Blower Fan Graphics NVIDIA RTX™ A2000 (12 GB GDDR6, 4 x Mini DisplayPort 1.4) Graphics NVIDIA® RTX A4000 (16 GB ECC GDDR6, 4 x DisplayPort 1.4) Graphics NVIDIA® RTX™ A4500 (20 GB GDDR6; 4 x DisplayPort 1.4, PCIe x16) Graphics NVIDIA® RTX™ A5000 (24 GB ECC GDDR6; 4 x DisplayPort 1.4, PCIe x16) Blower Fan Graphics NVIDIA® RTX™ A6000 (48 GB ECC GDDR6; 4 x DisplayPort 1.4, PCIe x16) Graphics – Blower Fan |
Second graphics card |
| Alternate Options | NVIDIA® T1000 (8 GB GDDR6, 4 x Mini DisplayPort, PCIe x16) 2nd Graphics NVIDIA RTX™ A4000 (16 GB GDDR6 ECC, 4 x DisplayPort 1.4; FH) Blower Fan 2nd Graphics |
| Additional networking options | Alternate Options |
| Intel Ethernet Network Adapter I225-T1 NVIDIA® Mellanox ConnectX®-6 Dx Dual Port 10/25GBE SFP28 Network Interface Card |
Application software |
| Alternate Options | Data Science Stack WSL2/Ubuntu Data Science Stack |
| Additional application software | Included in Current Configuration |
| HP ZCentral Remote Boost 2020 Software for Z Workstations | Keyboard |
| Included in Current Configuration | HP USB 320K Keyboard |
| Alternate Options | No Included Keyboard |
| Mouse | Included in Current Configuration |
| HP Wired 320M Mouse | Alternate Options |
| No Included Mouse | Graphics connectors |
| Included in Current Configuration | No Adapters Needed |
| Alternate Options | HP DisplayPort to HDMI 2.0 |
| Label | Alternate Options |
| China Reg CCC Compliance Mark Label FDA Class 1 Medical Device Label |
Security |
| Alternate Options | HP Remove Computrace BIOS Module HP Platform Certificate |
| Accessories | Alternate Options |
| Dual Slot Riser | Warranty |
| Included in Current Configuration | Three-year (3/3/3) limited warranty |
| FEMP compliance | Alternate Options |
| HP FEMP S5 Low Power Mode Label | External I/O Ports |
| Front:1 headset connector; 4 SuperSpeed USB Type-A 5Gbps signaling rate (1 Charging) : Rear:4 SuperSpeed USB Type-A 5Gbps signaling rate; 1 RJ-45 (10 GbE); 1 RJ-45 (1 GbE) : |
Expansion slots |
| 1 PCIe 3 x16; 2 M.2 PCIe 3 x4; 1 PCIe 3 x16 mechanical (x8 electrical); 1 PCIe 3 x8 mechanical (x8 electrical) | Memory slots |
| 4 DIMM | Software included |
| HP ZCentral Remote Boost 2020 | Security management |
| Full volume encryption; HP Keyed Cable Lock Kit; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP Sure Click; HP MIK/SCCM Gen2; HP Sure Sense; HP Sure Start Gen6; HP BIOSphere Gen6; HP Client Security Manager Gen6; HP Wolf Security Pro Edition | Weight |
| Starting at 23.7 lb (without rack rails); Starting at 30.3 lb (with rack rails) | Dimensions (W X D X H) |
| 1.69 x 17.25 x 24.61 in (without rack mounting ears); 1.69 x 19.17 x 25.42 (with front bezel) | Warranty |
| Protected by HP, including a 3 year standard limited warranty. Optional HP Care Pack Services are extended service contracts that extend your protection beyond the standard warranties. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc |

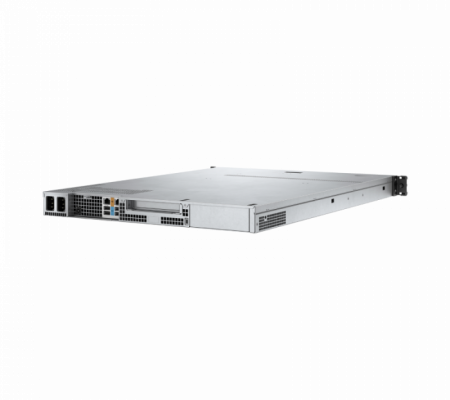

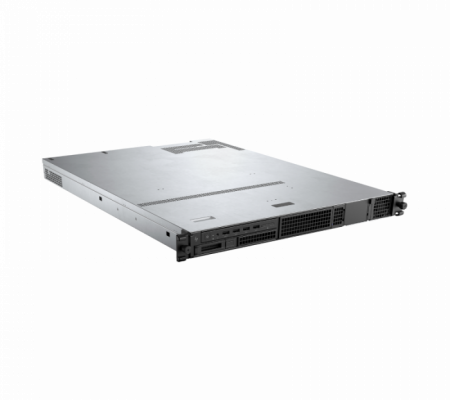

Համակարգիչ HP ZCentral 4R Workstation
- Windows 11 Pro
- Intel® Xeon® Processor
- 8 GB memory; 256 GB M.2 SSD
- NVIDIA® T400 Graphics
